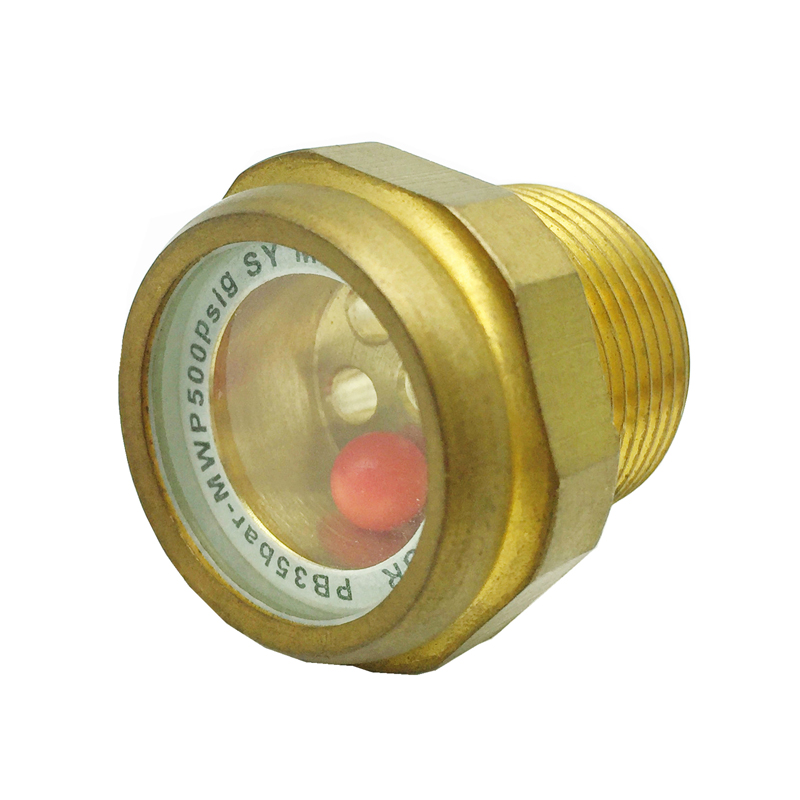

Solid Brass body,Heavy Duty Design
黃銅重型設(shè)計(jì)
Glass sight
鏡片：玻璃
Buna N seal
密封件：丁腈橡膠
Reflector-stainless steel
反光板：不銹鋼
Connections with NPT、G、M、BSPP、R are customized
連接方式：NPT、G、M、BSPP、R等螺紋
Maximum working temperature up to180°F (82.1°C).
最大工作溫度：82.1℃
| Item # 貨號(hào) |
A ( Male) |
B |
C |
D |
E |
Max work press.PSI@ 69°F(20.6°C) |
Clear with Open view
不帶反光板 |
Clear With Reflector
帶反光板 |
Clear with Reflector or Ball
帶反光板與浮球 |
| KCSGBH-02 |
N/A |
N/A |
1/4 |
0.50 (12.7) |
0.34 (8.64) |
0.62 (15.75) |
1.12 (28.45) |
675 (4654.1kpa) |
| KCSGBH-03 |
KCSGBH-03-01 |
KCSGBH-03-02 |
3/8 |
0.50 (12.7) |
0.44 (11.18) |
0.75 (19.05) |
1.12 (28.45) |
415 (2861.4kpa) |
| KCSGBH-04 |
KCSGBH-04-01 |
KCSGBH-04-02 |
1/2 |
0.62 (15.75) |
0.56 (14.22) |
0.88 (22.35) |
1.25 (31.75) |
250 (1723.8kpa) |
| KCSGBH-05 |
KCSGBH-05-01 |
KCSGBH-05-02 |
3/4 |
0.69 (17.53) |
0.75 (19.05) |
1.12 (28.45) |
1.25 (31.75) |
200 (1379kpa) |
| KCSGBH-06 |
KCSGBH-06-01 |
KCSGBH-06-02 |
1 |
0.81 (20.57) |
0.97 (24.64) |
1.44 (36.58) |
1.5 (38.1) |
100 (689.5kpa) |
| KCSGBH-07 |
KCSGBH-07-01 |
KCSGBH-07-02 |
1-1/4 |
0.88 (22.35) |
1.19 (30.23) |
1.75 (44.45) |
1.56 (39.62) |
60 (413.7kpa) |
| KCSGBH-08 |
KCSGBH-08-01 |
KCSGBH-08-02 |
1-1/2 |
0.88 (22.35) |
1.38 (35.05) |
2.00 (50.8) |
1.56 (39.62) |
50 (344.8kpa) |
| KCSGBH-09 |
KCSGBH-09-01 |
KCSGBH-09-02 |
2 |
0.88 (22.35) |
1.88 (47.75) |
2.5 (63.5) |
1.69 (42.93) |
20 (137.9kpa) |
