貨號 | 規格(Inch) | 材質 | 連接方式 | 溫度范圍 | 工作壓力 | 包裝數量 | 庫存 | 購買數量 |
CG-QBV-50H | 3/4"-16UN | 黃銅 | Male x Female | -4°F ~ 370°F | 600PSI | 9999999 |
-
+
|
|
CG-QBV3/4-16UNF | 3/4"-16UN | 黃銅 | Male x Female | -40°F ~ 365°F | 600PSI | 9999999 |
-
+
|
Rated for 600 PSI (WOG/CWP) 150 PSI (WSP) Service
Suitable for Vacuum Service to 29" Hg
ISO 9002 Registered Factory
Full Port
PTFE Seat Ring
Blow Out Proof Brass Stem
Hard Chrome Plated Brass Ball
Steel Handle w/Vinyl Grip
Male x Female Connection

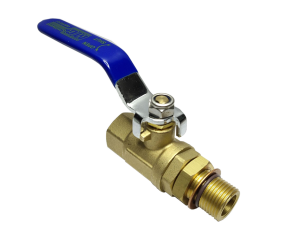

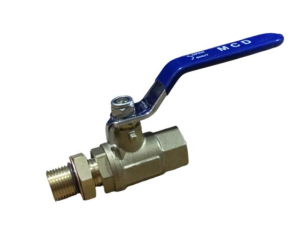

3/4-16 UNF Male x Female Connection . 1/2" Port Size Ball Valve
with Viton O-Ring .87 ± .003 Wide x .644 ±.009
Inside Diameter
